Petzl - COEUR BOLT STAINLESS 10mm

Petzl - COEUR BOLT STAINLESS 10mm


High quality stainless steel anchor for typical exterior use (pack of 20)

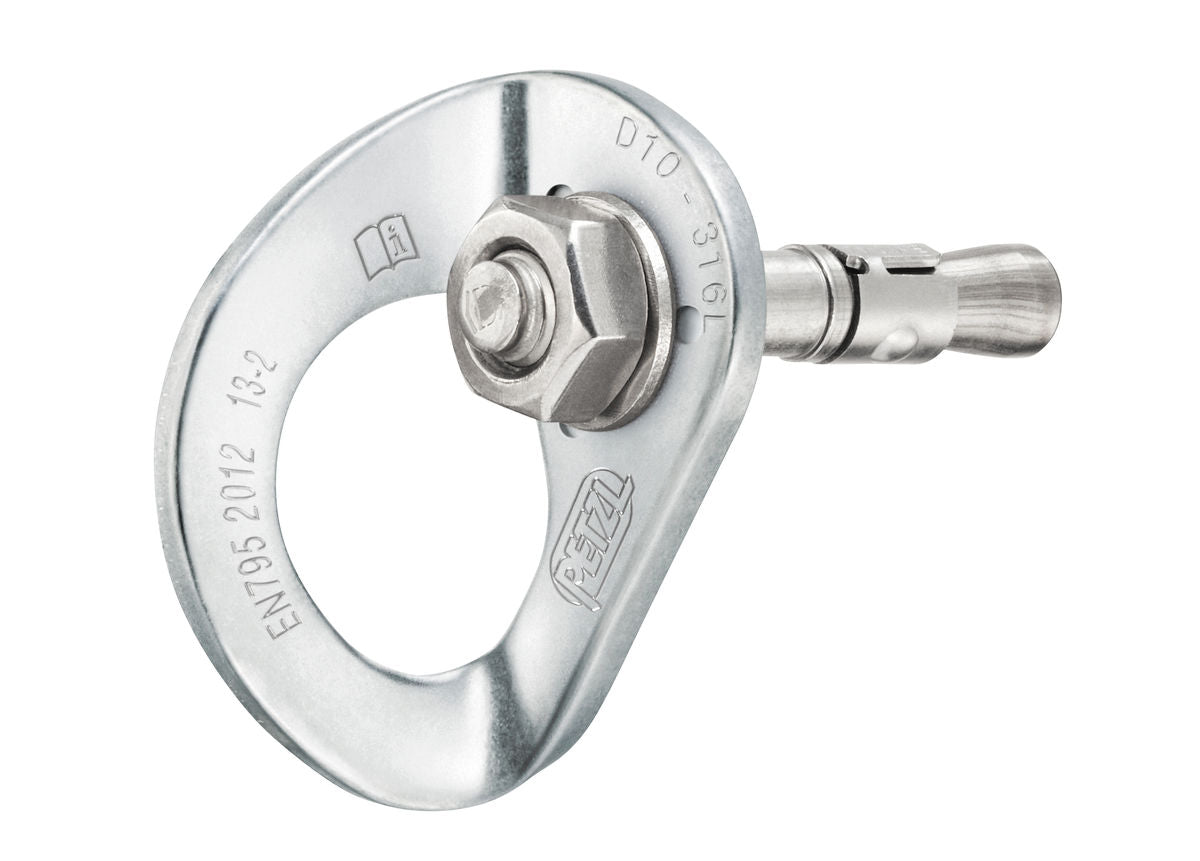

The COEUR BOLT STAINLESS is a high-quality stainless steel anchor made up of a COEUR STAINLESS hanger, a bolt, and a nut. It is designed for use in typical outdoor environments. It is available in 10 and 12 mm diameters.

Detailed description

  • 316L stainless steel assembly that offers excellent resistance to corrosion in typical exterior environments, made up of a COEUR STAINLESS hanger, a bolt, and a nut
  • Easy to clip:
    - the wide, ergonomic connection point facilitates carabiner clipping
    - the width of the attachment point allows installation of two carabiners at the same time
  • Reduces wear on connectors: the thickness of the hanger and the rounded edges of the connection point minimize wear on connectors
  • Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
  • Available in two bolt sizes (10 or 12 mm)
  • COEUR STAINLESS hangers, available separately:
    - for 10 mm diameter bolt (P36AS 10)
    - for 12 mm diameter bolt (P36AS 12)

Specifications

  • Material(s): 316L stainless steel
  • Certification(s): EN 959

SKUs

SKUs P36BS 10 P36BS 12
Diameter 10 mm 12 mm
Weight 110 g 135 g
Drilling diameter 10 mm 12 mm
Total bolt length 70 mm 85 mm
Shear strength in 50 MPa concrete 25 kN 25 kN
Pull-out strength in concrete 50 MPa 15 kN 18 kN
Guarantee 3 years 3 years
Inner Pack Count 1 1
1 926 kr
Tax included. Shipping calculated at checkout.
Vendors: Petzl Pro SKU: P36BS 10
